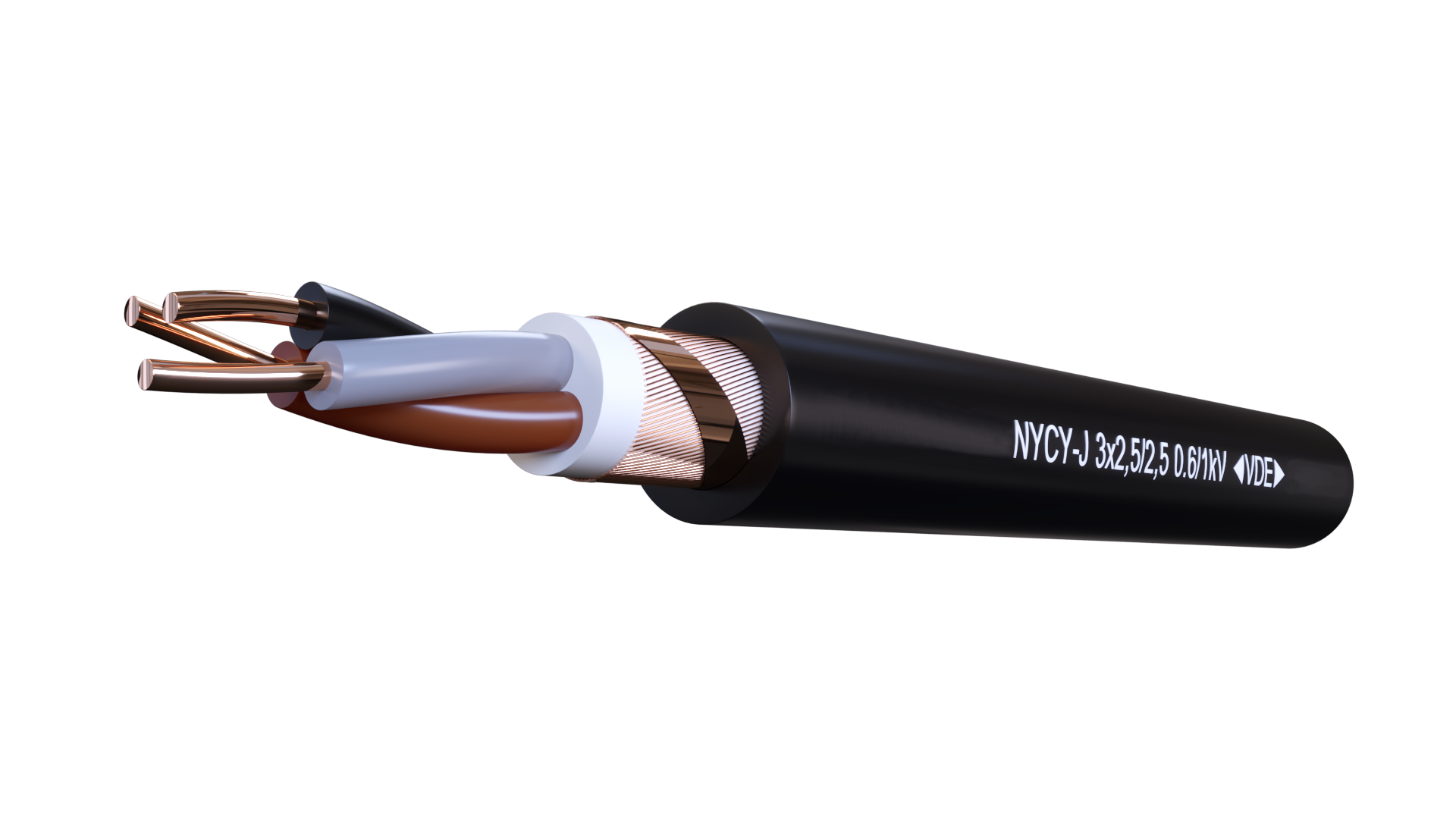

NYCY 0,6/1kV - PVC Insulated Heavy Current Cable with Concentric Conductor
Description
Application:
In dry, humid and wet locations, cable ducts, outdoors, underground and in water.
Construction:
Conductor - Copper : solid (RE) or stranded (RM)
Insulation - Polyvinylchloride (PVC)
Filling - core covering or taping
Screening - concentric conductor of copper wires and copper tape
Outher sheath - Polyvinylchloride (PVC), Black
Standards:
HD 603; IEC 60228
Certificate:
This cable is VDE certified
Core Identification:
JZ: One core green/yellow, other cores are black with figures
OZ: every core is black with figures
Specifications
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Short circuit time max. [sec] 5
Temperature range:
-30°C till +70°C
Max. temp. short circuit °C 160°C
Fire classification CPR class:
EN 50575 - Eca
