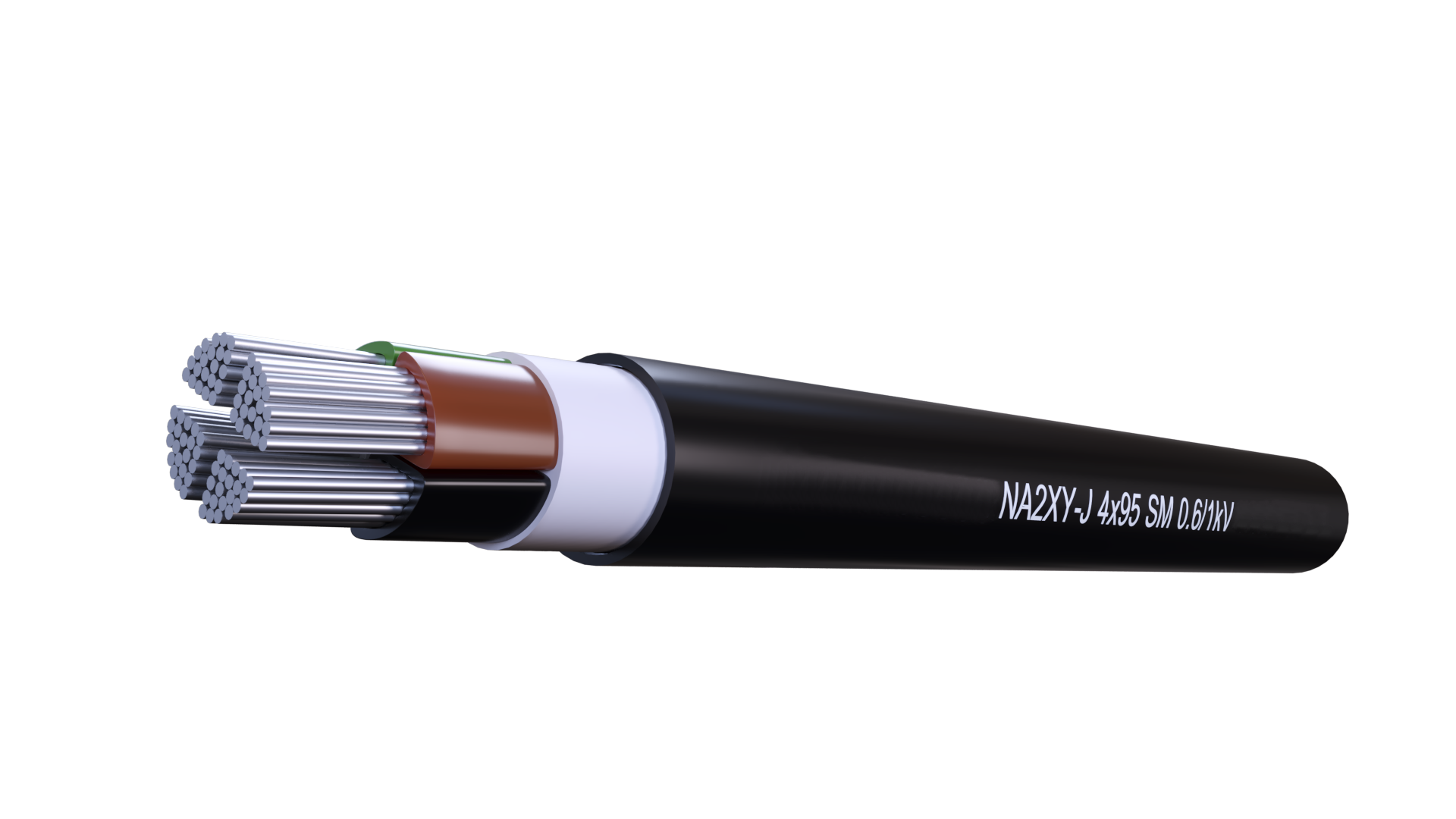

NA2XY 0,6/1kV - Power cable with XLPE insulation and PVC sheath
Description
Application:
For fixed installation in building, in free air, in ground and in water.
Construction:
Conductor - Aluminum : solid (RE/SE) / Stranded (RM/SM)
Insulation - Crosslinked polyethylene (XLPE), type DIX 3
Filling - Extruded inner covering
Outher sheath - PVC, DMV 6 type
Standards:
HD 604 S1; IEC 60228
Certificate:
OICPE
Specifications
Electrical Performance:
Nominal Voltage: 0.6/1 kV
Short circuit time max. [sec] 5
Temperature range:
-35°C till +90°C
Max. short circuit temp: 250°C
Fire classification CPR class:
EN 50575 –Eca
