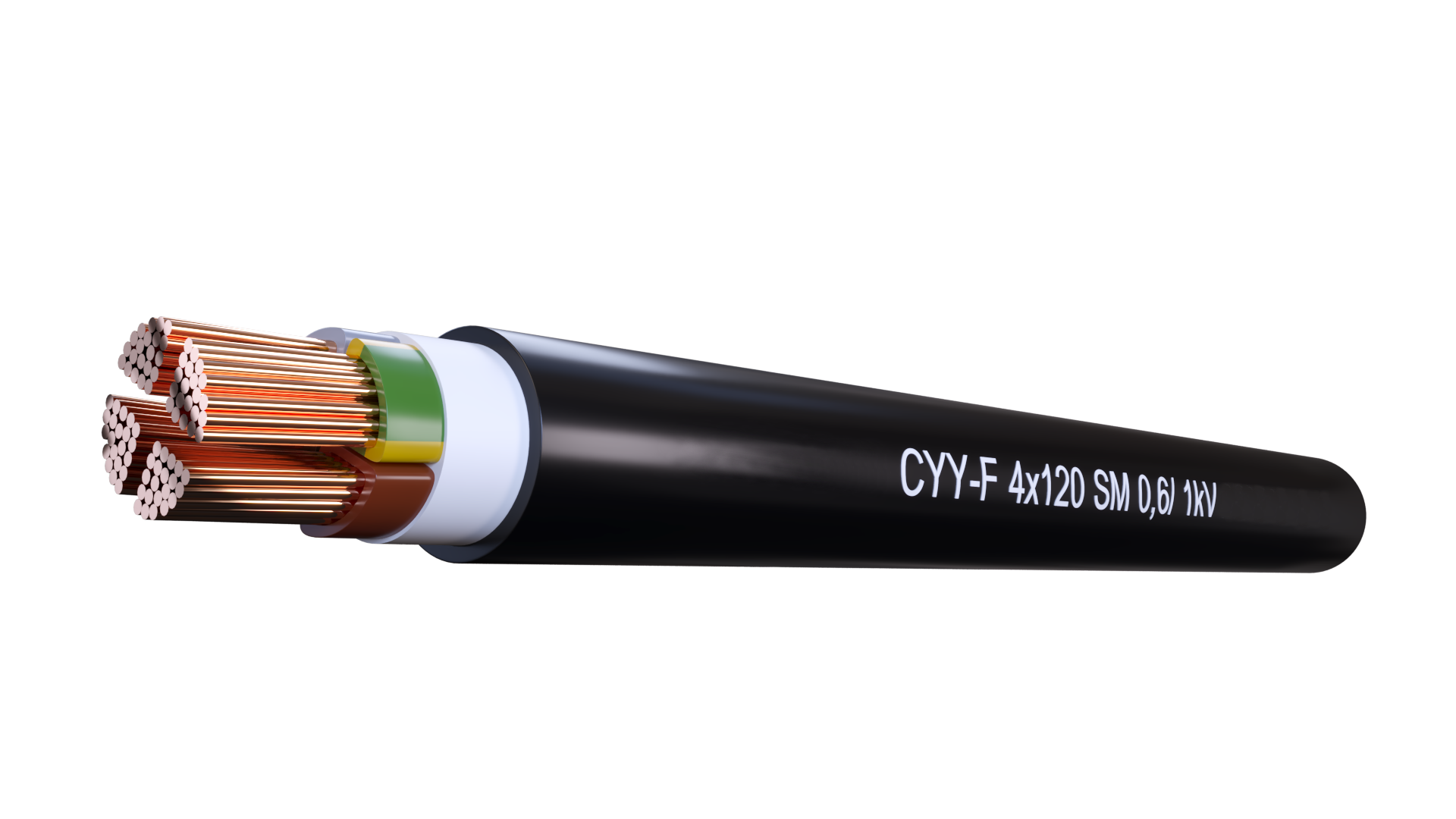

CYY-F 0,6/1kV - PVC Insulated Current Cable
Description
Application:
This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.
Construction:
Conductor - Copper : solid (RE) /Stranded (RM/SM)
Insulation - Core insulation of polyvinylchloride (PVC)
Filling - Core covering or taping
Outher sheath - Polyvinylchloride (PVC)
Standards:
IEC 60502-1; IEC 60228
Certificate:
OICPE
Specifications
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Short circuit time max. [sec] 5
Temperature range:
-35°C till +70°C
Max. Short-Circuit Temp.: short circuit 160°C <= 300mm; 140°C > 300mm
Fire classification CPR class:
EN 50575 - Eca
