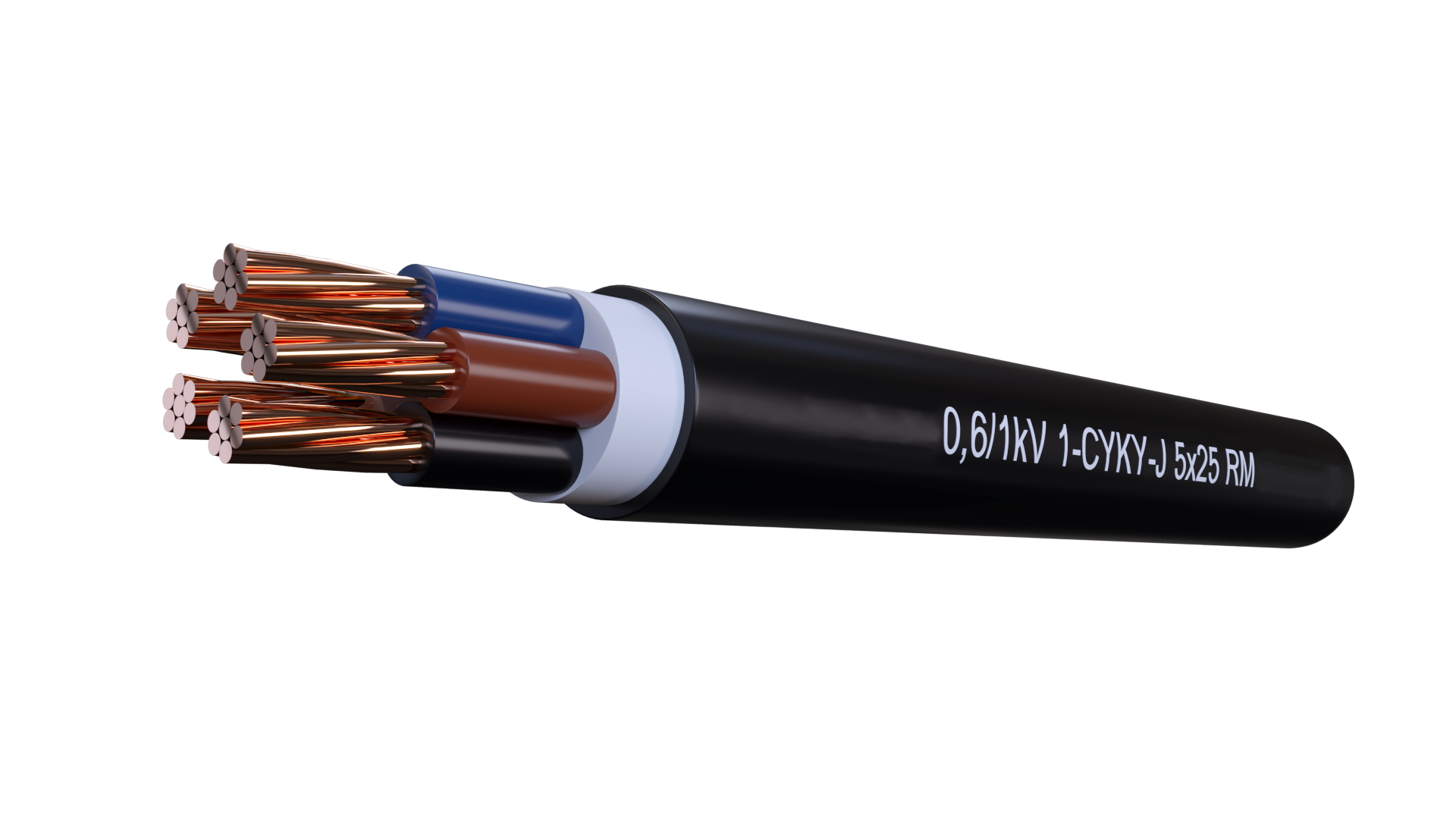

CYKY 0,6/1kV - Power cable 0,6/1 kV with Cu conductors, PVC insulated and sheathed

Description

Application:

In earth, ducts, on support brackets, in dry and wet conditions etc, where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry.

Construction:

Conductor - Copper : solid (RE) or stranded (RM/SM) bare copper
Insulation - Polyvinylchloride (PVC)
Filling - Core covering or taping
Outher sheath - Polyvinylchloride (PVC), Black, UV-resistant

Standards:

PNE 7659-3; IEC 60228

Certificate:

This cable is EZU certified

Core Identification:

Accordance to HD 308 S2

Specifications

Electrical Performance:

Nominal Voltage: 0.6/1 kV
Short circuit time max. [sec] 5

Temperature range:

-30°C till +70°C
Operating temp. short circuit 160°C ≤300mm²
Operating temp. short circuit 140°C > 300mm²

Fire classification CPR class:

EN 50575 – Eca
